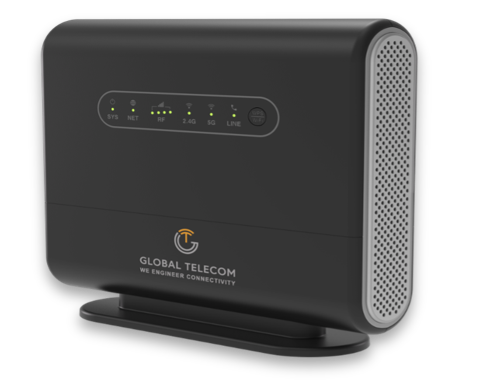

TITAN5000 5G NR & Wi-Fi 6 Indoor Router
Advanced 5G NR & Wi-Fi 6 Indoor Router
Global Telecom’s TITAN 5000 is an advanced 5G NR NSA/SA Sub-6GHz multiport indoor LAN, Wi-Fi and VoNR/VoLTE router delivering 5G and LTE fixed wireless to residential, small business and enterprise customers who need both bandwidth and multi-media data service. It can deliver up to 4.8 Gbps throughput – far exceeding wired broadband data speeds and easily satisfying the needs of HD video and VoIP applications – and is ideal for small businesses and consumers looking to cut the cord once and for all.
Features
- High-Gain Wideband Antennas
- Dual SIM/eSIM
- Global Wireless Bands
- Four WAN/LAN Gigabit Speed Ether Ports with fail-over ready
- Wi-Fi 6 Dual Band Support
- Qualcomm© SnapdragonTM X62 Chipset
Key Benefits
- Intent-Based algorithm ensures users have the best FWA experience available
- Plug and play with existing Wi-Fi networks
- Quick and easy to install and set up
- Remote configuration and management
- FWA-optimized module and chipset
- API support for zero-touch deployment
Technical Overview
Compliant with 3GPP Release 16 it includes advanced 4x4 MIMO with category 20 throughput, three gigabit ethernet LAN ports and one 2500M LAN/WAN port, VoLTE/VoNR Line, WiFi6 dual band support (802.11a/b/g/n/ac/ax), IP-passthrough for primary and backup networking capability, IPv4 & IPv6, and Multiple PDN support, VPN & full L2/L3 GRE tunneling client’s support, as well as FTP, HTTP, HTTPS and TR-069 management support.
|
Technical Specifications |
|
|
Physical |
|
|
Dimensions |
7.60inches (H 193mm) x 7.20inches (W 183mm) x 2.17inches (D 55mm) |
|
Weight |
< 700g |
|
Power consumptions |
< 18W |
|
Power Supply |
12V/2.0A DC Adapter |
|
Environmental |
|
|
Operating Temperature |
-15℃ to 55℃ |
|
Storage Temperature |
-40℃ to 85℃ |
|
Humidity |
90% max Non-condensing |
|
Wireless Radio Interface |
|
|
Radio Access |
3GPP Release 16, 5G NSA/SA 5G NR Sub-6G, LTE-TDD/LTE-FDD/WCDMA |
|
Operation Mode |
5G 4x4 MIMO, LTE 4x4 MIMO 1700~3800MHz, LTE 2x2 MIMO 617~960MHz |
|
Frequency Band |
5G NSA n2/n5/n7/n12/n14/n25/n26/n30/n38/n41/n48/n66/n71/n77/n78/n79 5G SA n1/n2/n5/n7/n12/n13/n14/n25/n26/n29/n30/n38/n41/n48/n66/n71/n77/n78/n79 LTE-FDD B1/B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71 LTE-TDD B38/B41/B42/B43/B46*/B48 WCDMA B1/B2/B4/B5 |
|
Modulations |
QPSK/QAM16/QAM64/QAM256 |
|
CA Support |
4G: 5CC, 5G: 2CC and ENDC CA Support |
|
Receive Sensitivity |
Compliance with 3GPP standard |
|
Output Power |
23dBm±2dB Per Tx, Power Class2 DL and Power Class 1.5 UP/HPUE Support |
|
Antenna Gain |
2-6.5dBi Wide Band Antenna (617-6000MHz) |
|
GNSS |
GPS/GLONASS/Galileo/QZSS |
|
Wi-Fi Interface |
|
|
Radio Access |
IEEE802.11a/b/g/n/ac/ax |
|
MIMO & Data Rate |
2 x 2 DBDC (3.6Gbps, BW=160MHz) |
|
Output Power |
12-15 dBm |
|
Antenna |
3-5dBi Built-in wide band antenna (2.4GHz & 5GHz) |
|
Connected Users |
64 |
|
Security |
64/128-bit WEP, WPA/WPA2/WPA3 |
|

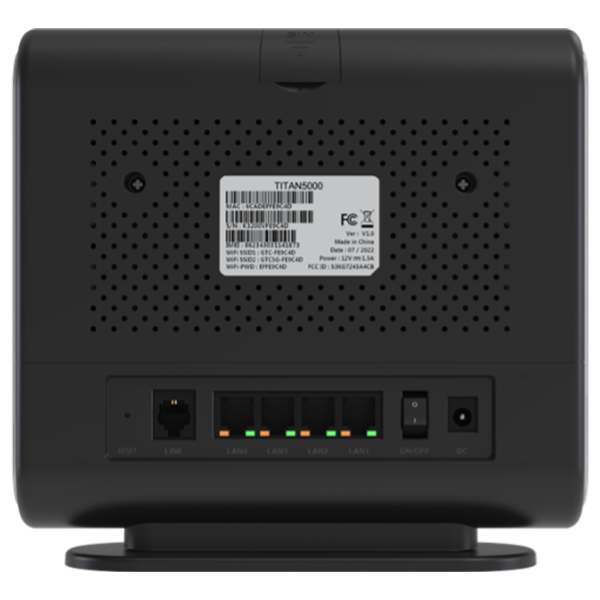

User Interface |
|
|
Data Interface |
3 GE RJ45 LAN Ports ，1 2500M LAN /WAN Port |
|
LED Indicators |
SYS, NET, RF1-4, 2.4GHz & 5GHz Wi-Fi, SDW, SIM |
|
SIM Support |
1.8V/3.0V Micro USIM 3FF, eSIM |
|
Software Specifications |
|
|
Networking Configuration |
Router and L3 Bridge Operation Support Built-in DHCP Server for LAN Devices IPv4 and IPv6 Support Multiple PDN Interface Support |
|
Data Networking Features |
VPN Pass-through support (PPTP, L2TP & IPsec), Built-in L2TP & GRE Tunneling Client Support DNS Proxy Support, Firewall & Access Control DMZ and Virtual Server Support IP and Port Forwarding Support Local and Remote Management Restriction Application Firewall Support NTP Service Support, LAN Device Access Control |
|
Device Management |
CLI, Telnet, HTTP and HTTPS Management Interfaces Standard Based TR-069 Management FTP and HTTP OTA Firmware Upgrade USIM/eSIM and PLMN Locking Support Device Factory Default Setting |
